Construction of a 1,100 l/s water treatment plant for surface water from the Guadalupe Victoria dam, to replace the current underground sources that supply the city of Durango.
The following are considered:

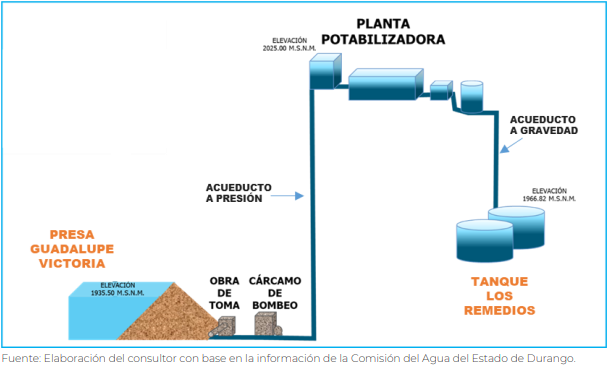

- Intake structure on the Guadalupe Victoria dam curtain to take advantage of 27 Mm3/year that will carry water to the pumping plant.
- Pumping plant with a capacity of 2,750 l/s, with 6 horizontal centrifugal pumps to send the water through a pressure aqueduct to the potabilization plant.
- Potabilization plant, first stage, which includes: construction of two treatment modules with a capacity of 550 l/s each, construction of auxiliary buildings (dosing, substation, operation and control, chlorination station, centrifugal equipment and polymer station, etc.). After treatment, the water will be carried through the aqueduct.
- Aqueducts: two pipelines, one pressurized 10.4 km long from the pumping plant to the potabilization plant and a 0.8 km gravity aqueduct from the potabilization plant to join an existing 7.6 km pipeline that reaches the "Los Remedios" storage tank.
